Product Introduction

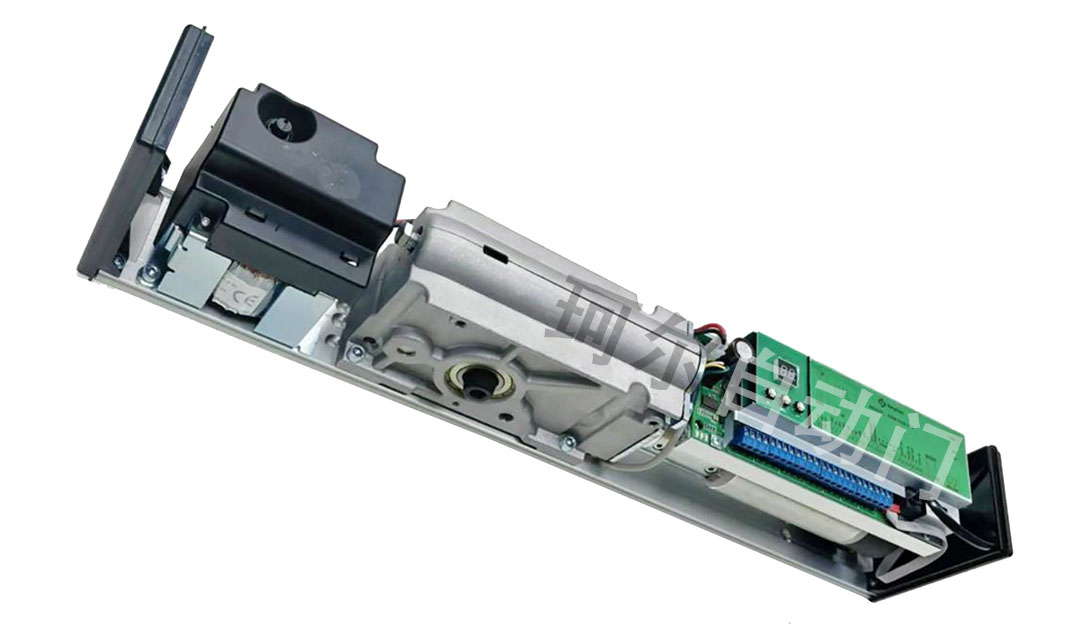

ED-350 Swing door operators
FUNCTION INTRODUCTION
Driving devices works with low noise, reliable performance, safety,brings living and working environment more convenience.
In case of meeting obstacles or personnel during operation, the door will be opened to reverse direction.
Innovation in mechanical design offers effective installation.
With sensors, access control, safety beam protection interfaces, configurate electric lock, power output interface.
It can realize the interlock function between door and door.
TECHNICAL DATA
Supply power：100-240V AC 50/60Hz
Power consumption ：≤75W
Accessorypowersupply：24VDC ≤4 00m A
Fordoorwidth：700mm-1200mm
Fordoorweight：45-160kgs
Openingangle：pullarm：80°~110° pusharm：80°~110°
Openingtime：3-6s
Closingtime：3-6s
Hold-opentime：1.5-30s
Ambitiontemperature：-20℃~+45℃
Relativehumidity：≤85% ED-350Automatic Automatic
